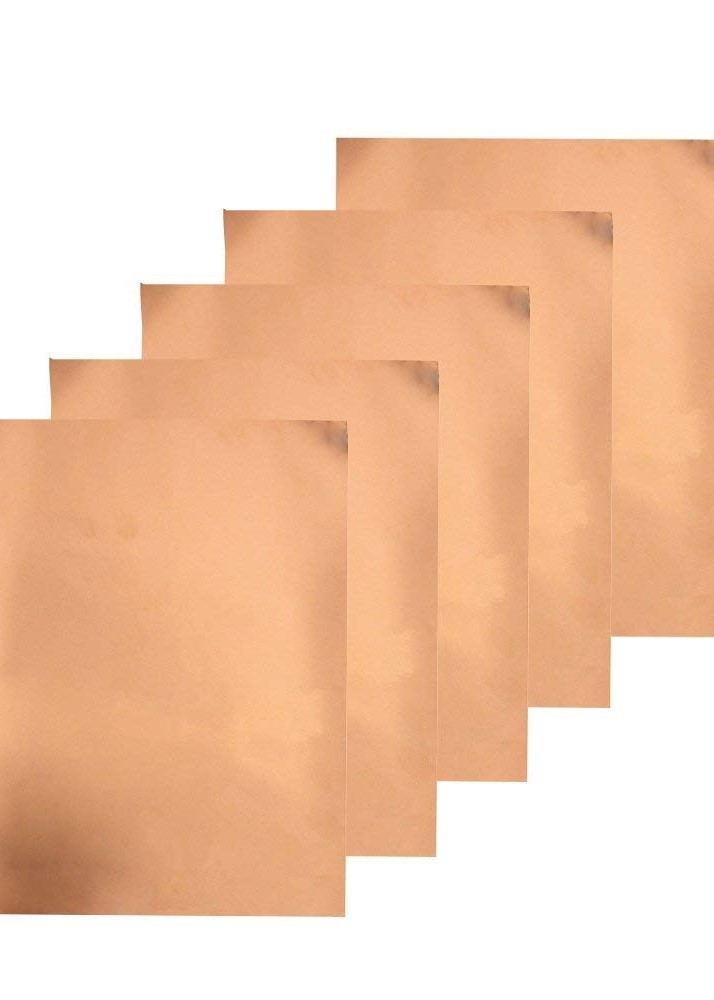

Copper Foil Shielding 1320mm width Electrodeposited Copper Foil
Description:
Our copper foil inventory consists of Electro Tough Pitch (110 alloys) and Oxygen Free (102 alloys).
Copper is a versatile metal used in a variety of industries.
Major characteristics include being a malleable and ductile metal with a very high thermal and electrical conductivity.
Specification:
ED copper foil
| Qualtiy Items | General Technical Terms |
| Normal thickness | 2oz | 3oz | 4oz | 5oz |
| 0.07mm | 0.105mm | 0.14mm | 0.175mm |
| Area Weight(g/m2) | 560-610 | 838-960 | 1100-1280 | 1380-1600 |
| Tensile strength | Room temperature | ≥28 | ≥28 | ≥28 | ≥28 |
| (kg/mm2) |
| Elongation | Room temperature | ≥10 | ≥10 | ≥10 | ≥10 |
| % |
| Leakage points(points/m2) | No |
| High-temperature Anti-Oxidization Performance(180℃/h) | No Oxidization |
| Width Tolerance | (+2.0 ,-2.0) |
Specification:
RA copper foil
| Thickness | 0.1mm /0.15mm | 0.15mm-0.5mm |
| Width | 150mm/300mm/600mm | 600mm/800mm |
Application:
ED Shielding Copper Foils with High Elongation and High Tensile Strength,
can be used in many areas. We can provide the specific single-matte, double-matte,
and double-shiny ED Copper for the Li-ion Battery. And we can also offer 2oz to 6oz
( nominal thickness 70um to 210um)
Shielded ED Copper Foils used for shielding of electric products,
especially as a transformer, cable, mobile phone, computer, mechanical treatment, and aerospace.
FAQ:
Q1. What about the lead time?
A: 3-5 days for Sample preparing, 8-10 working days for mass production.
Q5. How to proceed with an order for copper foil?
A:
Firstly let us know your size and quantity.
Secondly, We quote stock roll or your quantity.
Thirdly place an order and wait for your bank slip to start production
