RF Room Emi Shielding Gasket Knitted Metal Monel Wire Mesh

Shielding Gaskets Knitted Metal Monel Wire Mesh Emi Shielding Gasket

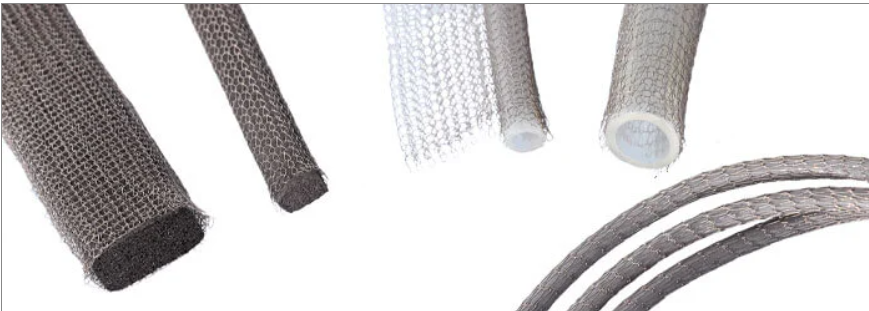

The Knitted wire mesh EMI/RFI shielding gaskets of a layer of knitted electrically conductive metal wires attached to

a low-closure force rubber or elastomer core. For heavy-duty applications like EMP or high temperatures,

a full metal version is available. Sometimes a Metal knit EMI/RFI gasket is combined with an environmental seal to provide IP rating,

depending on the materials used.

Knitted wire mesh gaskets provide a cost-effective solution to high shielding performance applications in the

magnetic and electrical fields, including EMP. The gaskets can be made either completely from knitted metal mesh

or from knitted metal mesh over an elastomer core which allows recovery after compression.

For high-frequency shielding, foil-based gaskets like Amucor Shield 6800 series will perform better,

because of their much larger contact surface.

Benefits

• High attenuation for lower frequencies (low-frequency magnetic shielding)
• Suitable for use under extreme conditions (military applications)
• Wear-resistant
• Not susceptible to corrosion
• Various conductive materials against tension corrosion
• Roll lengths of 1 to 1000 meters (depending on width and height of the gasket)
• Tools required: pair of scissors

Options (on request)

• Custom made in the dimensions specified
• Available with flame-retardant core
• Available with conductive self-adhesive
• Available with chemical-resistant rubbers like EPDM
• Silicone sponge for high temperatures up to 220 °C
• Cut into accurate lengths as a ready-made frame

Specifications and Material

Performance

knitted emi shielding gasket

monel wire mesh emi shielding gasket
