15 Mm1200 Mm1000 Mm X Ray Lead Glass Radiation Protection Ct Room Shielding

Name: 15 Mm1200 Mm1000 Mm X Ray Lead Glass Radiation Protection Ct Room Shielding
Brand: Jovi
Price: 200 USD

Brand Name : Jovi

Model Number : 1-CF-15

Certification : CE

Place of Origin : China

MOQ : 1 PC

Price : USD200-2167/PC

Payment Terms : L/C, T/T

Supply Ability : 3000PCS per month

Delivery Time : 5-8 work days

Packaging Details : Wrapped in kraft paper, then packed in wooden case. Size according to lead glass size, usually 5 pcs per case.

Product Name : Lead glass

Application : X-ray, CT

Size : 15 mm*1200 mm*1000 mm

Composition : rmon-pbo-sio2 (B2O3)

Function : Xray CT Protection

Shape : customized

Frame : with Frame or without frame

Destiny : 4.1g/cm³,4.3g/cm³,4.7g/cm³,5.2g/cm³

Lead equivalent : 1.7mmPb-8mmPb

Package : Customized wooden cases

Contact Now

8mm 10mm 12mm 15mm 18mm 20mm 25mm X-ray Lead Glass Sheet

X-ray lead glass is made of high quality optical grade material. It provides excellent radiation shielding, superb visual clarity, high light transmission and does not discolour due to radiation. The hard, polished surfaces have excellent scratch resistance .X-ray Protective glass Anti- radiation Lead glass viewing windows are an important feature for any scanning room ,safely allowing the operator to view their patient in a protective environment.

Products Description

Depending on your requirements, x-ray protective lead glass can be provided at any size ,

and the lead material used in the glass can vary depending on the strength of protection needed.

1) Model : ZF2 / ZF3 / ZF6 / ZF7

2) Size of Lead glass

X-ray Lead Glass Dimension
L x W	8mm	10mm	12mm	15mm	18mm	20mm	25mm
200 x 300	√	√	√	√	√	√	√
300 x 400	√	√	√	√	√	√	√
400 x 600	√	√	√	√	√	√	√
600 x 800	√	√	√	√	√	√	√
600 x 900	√	√	√	√	√	√	√
1000x800	√	√	√	√	√	√	√
1200x800	√	√	√	√	√	√	√
1200x900	√	√	√	√	√	√	√
1200x1000	√	√	√	√	√	√	√
1200x1200	√	√	√	√	√	√	√
1500x900	√	√	√	√	√	√	√
1500x1000	√	√	√	√	√	√	√
1500x1200	√	√	√	√	√	√	√
1600x1000	√	√	√	√	√	√	√
1600x1200	√	√	√	√	√	√	√
1800x1000	√	√	√	√	√	√	√
1800x1200	√	√	√	√	√	√	√
2000x1000	√	√	√	√	√	√	√
2000x1200	√	√	√	√	√	√	√
2400x1200	×	√	√	√	√	√	√
* Above is standard size , non-standard size can be customized

Above size is always available in our stock , if need other sizes , please contact us freely , we can

produce as per your requirement .

Thickness : 7mm / 8mm / 9mm / 10mm / 12mm / 13mm / 14mm /15mm / 16mm / 17mm / 18mm / 20mm /22mm / 23mm / 24mm / 25mm / 30mm / 40mm

/ 45mm / 50mm / 60mm / 70mm / 80mm / 90mm / 100mm / 110mm / 120mm / 130mm / 140mm / 150mm / 160mm / 180mm / 200mm

2. Terms of medical X ray protective lead glass:

Payment: TT

Delivery time: Abt 3 days after your payment

Packing: Foams and wooden case

Shipping: Tianjin Xingang port.

Specification:

Model	Refractive index	Density (G/cm3)	Lead Equivalent	Sio2 (%)	Pb3O4 (%)	Others (%)	Transparency
ZF2	1.6725	4.2	0.21	39.1	55.41	5.49	90%
ZF3	1.7172	4.46	0.24	33.88	61.05	5.07	85%
ZF6	1.755	4.76	0.27	30.96	65.06	3.98	75%
ZF7	1.06	5.2	0.33	27.27	70.93	1.8	70%

Packaging & Shipping

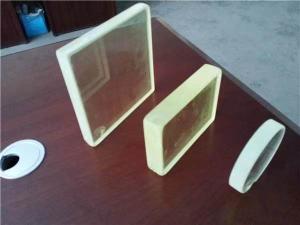

The main photos of the products:

15 Mm*1200 Mm*1000 Mm X Ray Lead Glass Radiation Protection Ct Room Shielding

Packaging:lead glass window with Standard Sea-worthy package , fixed by belt then loaded into fumigated wooden box .

20Gp - 2.352(width) 2.385 ( Height ) 5.90 ( Inside length ) Meter
40Gp - 2.352(width) 2.385 ( Height ) 11.8 ( Inside length ) Meter
40HQ - 2.352(width) 2.69 ( Width ) 5.90 ( Inside length ) Meter

Shipping:7-10 day against the payment ,

Our Services

Customized service :

we can design the lead glass window according to the customer require. Generally speaking, the lead glass window frame is about 5cm thick. Please note we should know the lead glass window size you need include the door frame size or not.

Why choose our factory?

We quote, produce, deliver and best after-sale service.

1. Advanced process equipment

2. Competitive price and high quality

3. Excellent after-sale service

4. Attractive design and various styles

5. Powerful technology R&D team

6. Strict quality assurance system and perfect testing means

7. Advanced process equipment

8. Delivery on time

9. Have a good reputation in the domestic and overseas.

When you inquiry, please tell us:

1. The lead equivalent?1mmPb, 2mmPb and so on.

2. The size for the lead door: length and width?

3. Single or double door?

4. Sliding door or swing door?
